Description

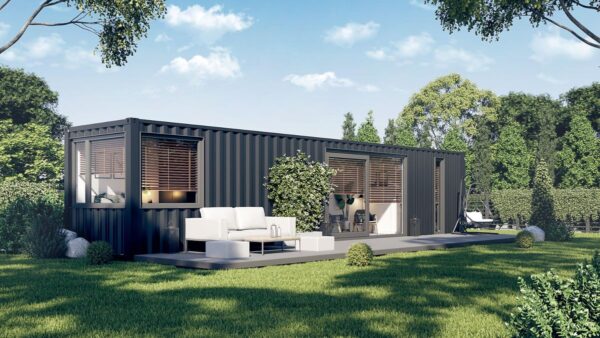

L30.8Open space for living

L30.8 to konstrukcja na bazie nowego kontenera morskiego 40FT HC

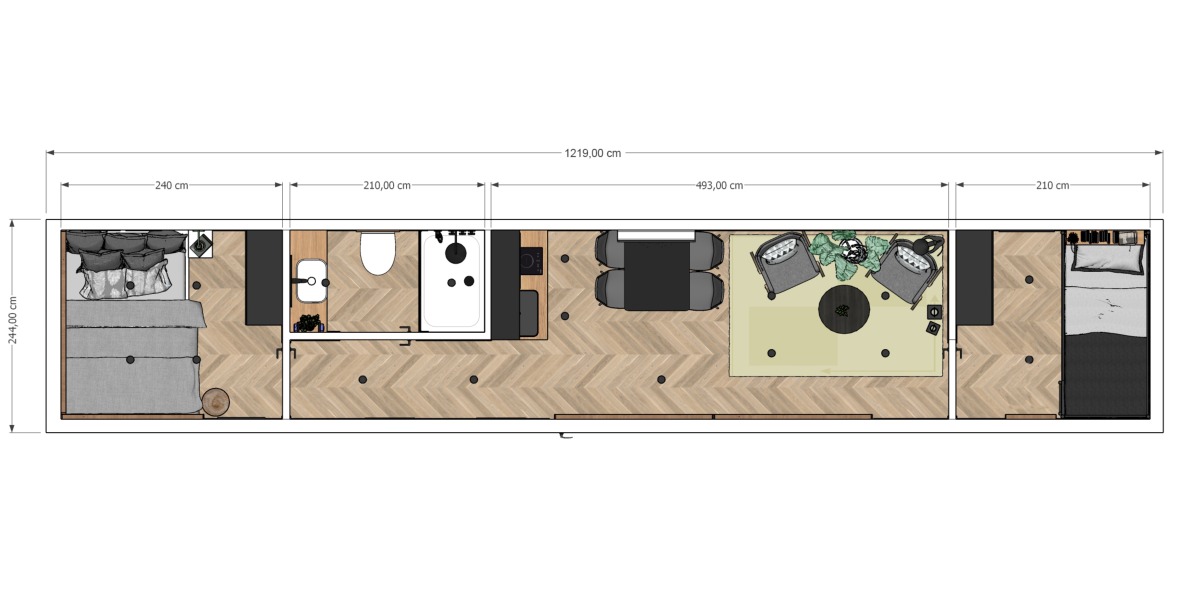

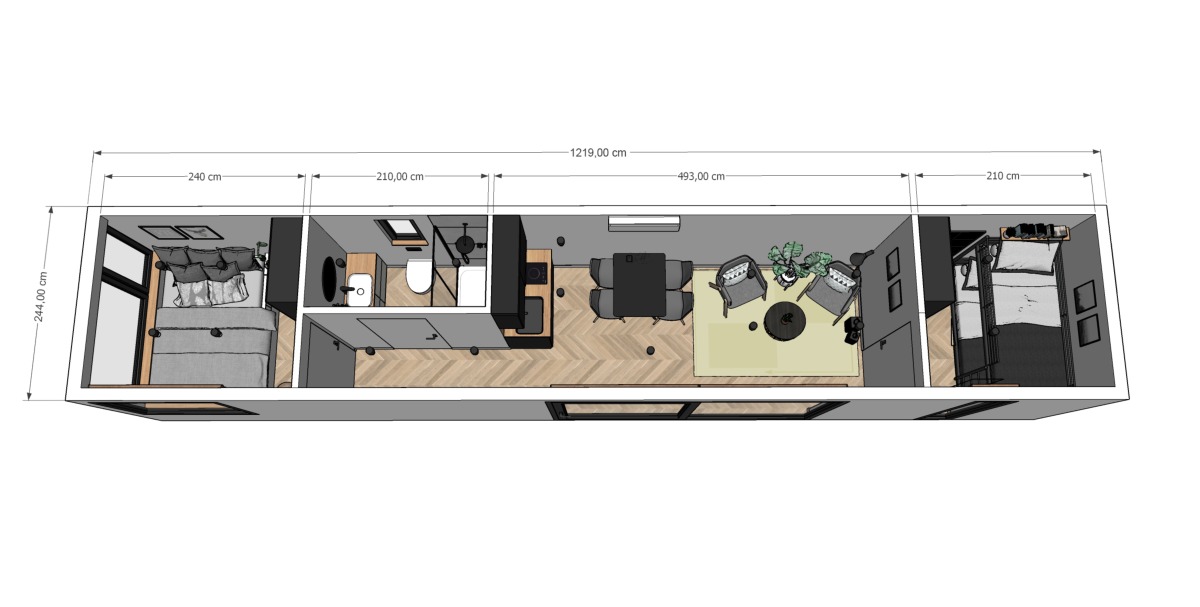

  • 5External dimensions: 2,44 x 12,19 x h 2,89 m, building surface 29,8 m².
  • 5Internal dimensions: 2 x 11,80 x h 2,45 m, internal surface 23,9 m²
  • 5Rooms: living room with kitchenette 12.5 m², bedroom 4.87 m², bedroom 4.2 m², bathroom 2.3 m²

CONTAINER ADAPTATION SCOPEto development state

NEW SHIPPING CONTAINER (ONE WAY)

The container adaptation is made on a new 40 HCone way container. The shipping container is made of weathering steel from weathering steel. The weathering steel has been specially designed and developed to minimise corrosion in the very harsh atmospheric conditions found in the marine environment

MODIFICATION OF CONTAINER DESIGN

Cutting and removal of wall elements from container sheet metal to prepare the structure for the installation of windows and doors. Prefabrication and welding with high quality welds. Accuracy and high aesthetics of the work carried out.

THERMAL ISOLATION

Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient U 0.16-0.18 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30 [W/(m2•K)].

ANTHRACITE-COLOURED WINDOW AND DOOR JOINERY

As standard, a 3-glazing package with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)]. 5-chamber frame and sash profiles made of PVC in A class. Available with toughened, safety, anti-burglary or solar control glass.

ELECTRICAL INSTALLATION

Flush-mounted, fittings (switchboard, sockets, connectors).

PLUMBING

Flush-mounted, welded PP, PVC sewer pipe. Connections in the floor outside the container

WALL AND CEILING FINISHES

Internal steel and wood construction of walls and ceilings, plasterboard construction, surface finished with a plasterboard and painted.

EXTERIOR PAINTING

Container hydrodynamically painted with alkyd or polyurethane paint.

ADDITIONAL EQUIPMENT

BATHROOM

30L water heater, 120×80 shower tray, shower cubicle, thermostatic shower mixer, bathroom countertop (laminate), mirror, pedestal washbasin, concealed washbasin mixer, lavatory seat with concealed rack, flush or sliding door on container sheet metal track, bathroom radiator.

KITCHEN

IKEA KUNGSBACKA 120 cm built-in kitchen, refrigerator, induction hob, extractor hood, single-bowl sink, mixer tap with pull-out spray

BEDROOM

comfortable IKEA bed

AIR CONDITIONING

Haier 5 kW air conditioning with heating function

FLOOR

Vinyl panels, 10cm MDF skirting boards

LIGHTING

Indoor and outdoor LED

ADDITIONAL INFORMATION

The building has insulation parameters at the level of a traditional single-family house. Our insulation provides comfortable living conditions
