Description

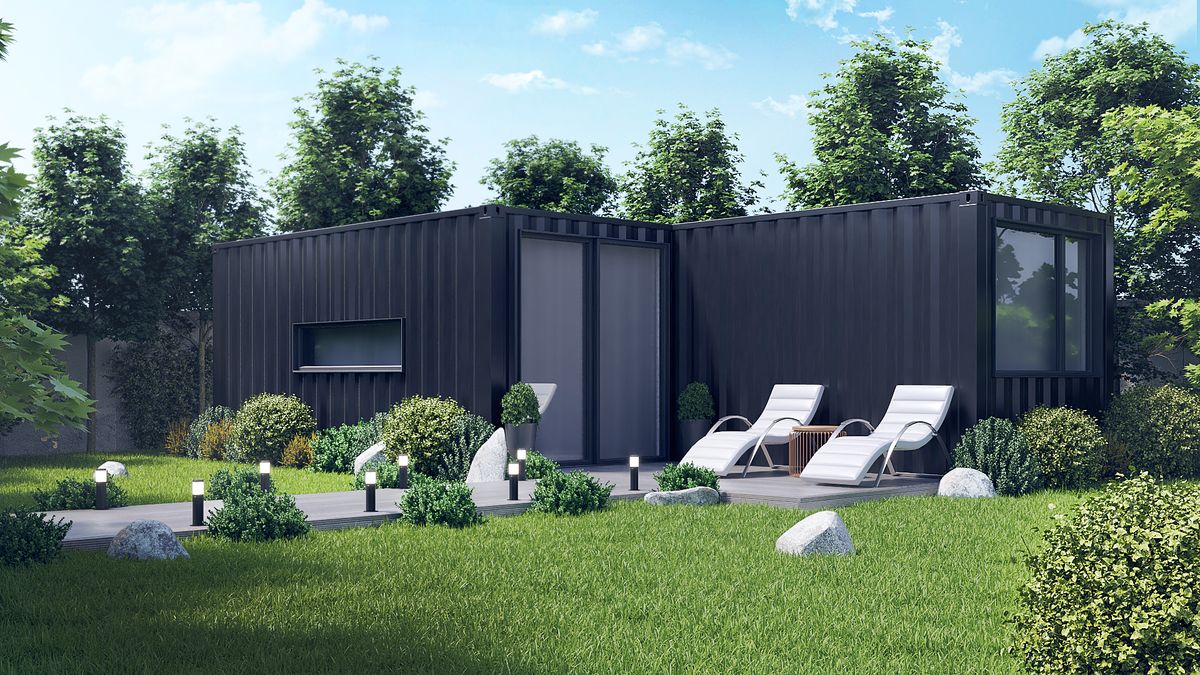

F30.1Open space for living
The F30.1 is a design based on the new 40FT HC shipping container divided into 2 sections of 5m and 7m.

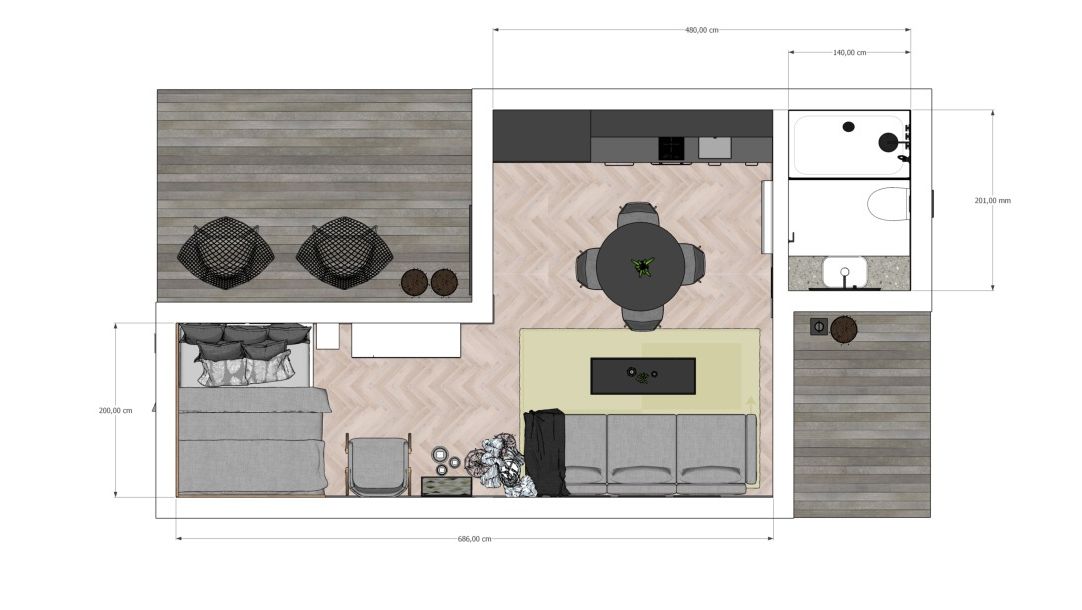

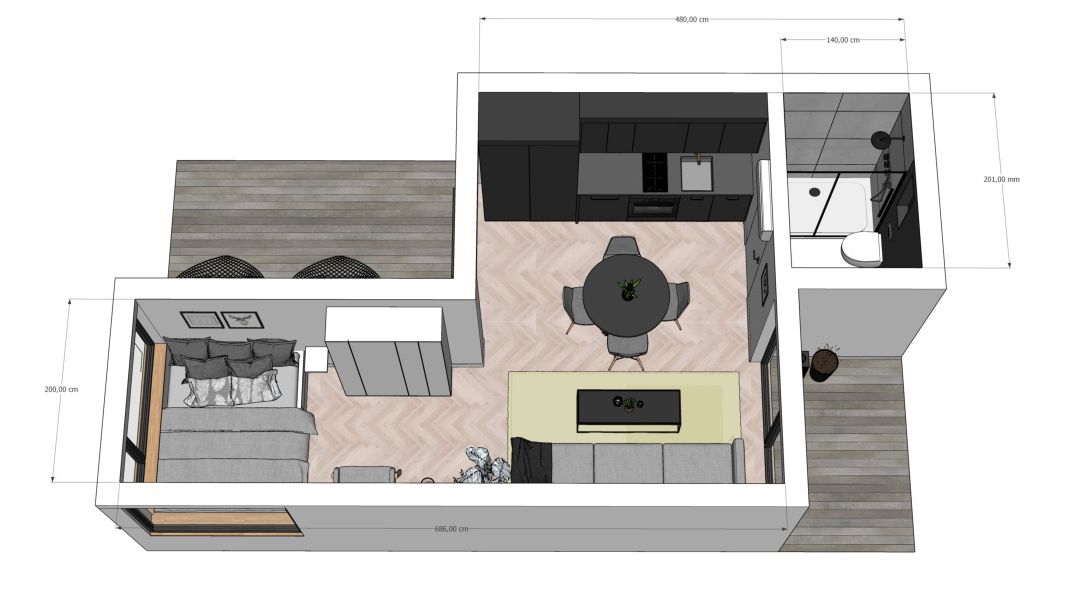

- 5 External dimensions: 4.90 x 8.60 x h 2.89 m, built-up area 29.8 m².
- 5 Internal dimensions: 2.00 x 6.86 x h 2.45 m plus 2.01 x 4.80 x 2.45 m, internal area 23.4 m²
- 5 Rooms: living room with kitchenette 13.9 m², bedroom 7.1 m², bathroom 2.4 m²
SCOPE OF CONTAINER ADAPTATIONshell
NEW SHIPPING CONTAINER (ONE WAY)
The container adaptation is made on a new 40 HCone way container. The shipping container is made of weathering steel from weathering steel. The weathering steel has been specially designed and developed to minimise corrosion in the very harsh atmospheric conditions found in the marine environment
MODIFICATION OF CONTAINER DESIGN
Cutting and removal of wall elements from container sheet metal to prepare the structure for the installation of windows and doors. Prefabrication and welding with high quality welds. Accuracy and high aesthetics of the work carried out.
THERMAL ISOLATION
Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient U 0.16-0.18 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30
ANTHRACITE-COLOURED WINDOW AND DOOR JOINERY
As standard, a 3-glazing package with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)]. 5-chamber frame and sash profiles made of PVC in A class. Available with toughened, safety, anti-burglary or solar control glass.
ELECTRICAL INSTALLATION
Flush-mounted, fittings (switchboard, sockets, connectors).
PLUMBING
Flush-mounted, welded PP, PVC sewer pipe. Connections in the floor outside the container
WALL AND CEILING FINISHES
Internal steel and wood construction of walls and ceilings, plasterboard construction, surface finished with a plasterboard and painted.
EXTERIOR PAINTING
Container hydrodynamically painted with alkyd or polyurethane paint.
ACCESSORIES
BATHROOM
30L water heater, 120x80 shower tray, shower cubicle, thermostatic shower mixer, bathroom countertop (laminate), mirror, pedestal washbasin, concealed washbasin mixer, lavatory seat with concealed rack, flush or sliding door on container sheet metal track, bathroom radiator.
KITCHEN
IKEA EKESTAD + METOD or KUNGSBACKA 305 cm built-in kitchen, oven with thermo-freezer, large fridge-freezer 213+60l, induction hob, dishwasher 45 cm, extractor hood, single-bowl sink, stainless steel mixer tap
LOUNGE
IKEA sofa with sleeping option
BEDROOM
IKEA bed with drawers
AIR CONDITIONING
Haier 5 kW air conditioning with heating function
FLOOR
Vinyl panels, 10cm MDF skirting boards
LIGHTING
Indoor and outdoor LED
ADDITIONAL INFORMATION
The building has insulation parameters at the level of a traditional single-family house. Our insulation provides comfortable living conditions
