Flexicube L15XL Barber

To learn more details and prices of the various options, download the current product catalogue in PDF to your email address.

Categories: ,

Description

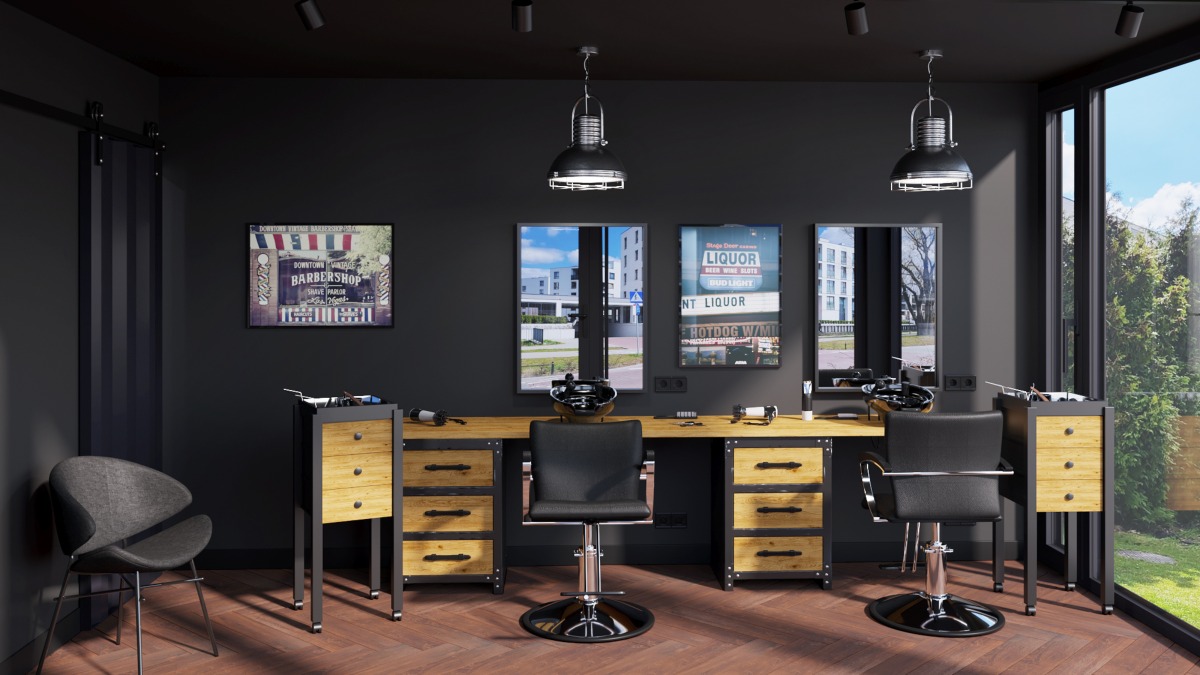

L15XL BarberOpen space for work

The L15XL Barber is an adaptation of the new 20FT HC shipping container widened to 3m.

  • 5External dimensions: 3,00 x 6,06 x h 2,89 m, building surface 18,18 m².
  • 5Internal dimensions: 2,55 x 5,60 x h 2,45 m, internal surface 14,28 m².

CONTAINER ADAPTATION SCOPEto development state

NEW SHIPPING CONTAINER (ONE WAY)

The container adaptation is made on a new 20FT HC one way container. The shipping container is made of weathering steel from weathering steel. The weathering steel has been specially designed and developed to minimise corrosion in the very harsh atmospheric conditions found in the marine environment.

MODIFICATION OF CONTAINER DESIGN

Cutting and removal of wall elements from container sheet metal to prepare the structure for the installation of windows and doors. Prefabrication and welding with high quality welds. Accuracy and high aesthetics of the work carried out.

THERMAL ISOLATION

Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient U 0.16-0.18 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30 [W/(m2•K)].

ANTHRACITE-COLOURED WINDOW AND DOOR JOINERY

As standard, a 3-glazing package with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)]. 5-chamber frame and sash profiles made of PVC in A class. Available with toughened, safety, anti-burglary or solar control glass.

ELECTRICAL INSTALLATION

Flush-mounted, fittings (switchboard, sockets, connectors).

PLUMBING

Flush-mounted, welded PP, PVC sewer pipe. Connections in the floor outside the container

WALL AND CEILING FINISHES

Internal steel and wood construction of walls and ceilings, plasterboard construction, surface finished with a plasterboard and painted.

EXTERIOR PAINTING

Container hydrodynamically painted with alkyd or polyurethane paint.

ADDITIONAL EQUIPMENT

BATHROOM

30L water heater, washbasin on cabinet with integrated mixer tap, toilet seat with concealed cistern, door, bathroom radiator

WORKPLACE

Furniture to be inserted by the customer

AIR CONDITIONING

3.5 kW Haier air conditioning with heating function

FLOOR

Vinyl panels, skirting boards MDF white 10cm

LIGHTING

Indoor and outdoor LED

ADDITIONAL INFORMATION

The building has insulation parameters at the level of a traditional single-family house. Our insulation provides comfortable living conditions
