Description
F30 OfficeOpen space for work

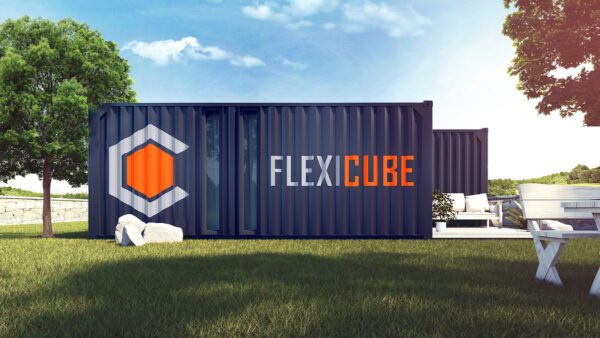

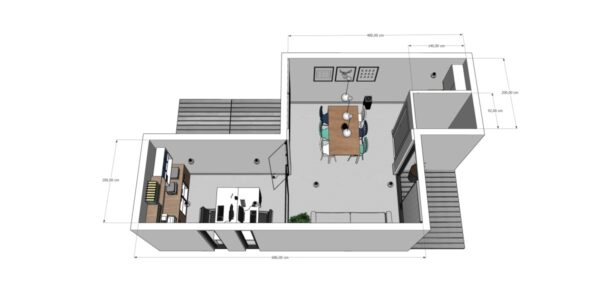

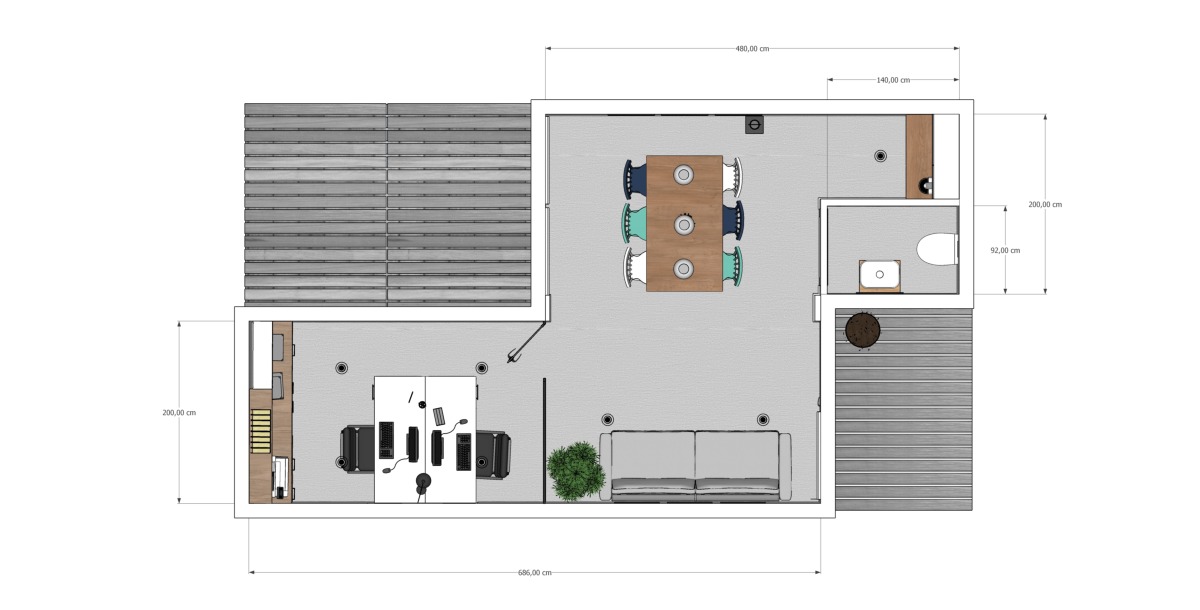

The F30 Office is an adaptation of a new 40FT HC shipping container divided into 2 sections of 5m and 7m.
- 5 External dimensions: 4,90 x 8,60 x h 2,89 m, building surface 29,8 m².
- 5 Internal dimensions: 2,00 x 6,86 x h 2,45 m plus 2,01 x 4,80 x 2,45 m, internal surface 23,4 m².
CONTAINER ADAPTATION SCOPEto development state
NEW SHIPPING CONTAINER (ONE WAY)
The container adaptation is made on a new 20FT HC one way container. The shipping container is made of weathering steel from weathering steel. The weathering steel has been specially designed and developed to minimise corrosion in the very harsh atmospheric conditions found in the marine environment.
MODIFICATION OF CONTAINER DESIGN
Cutting and removal of wall elements from container sheet metal to prepare the structure for the installation of windows and doors. Prefabrication and welding with high quality welds. Accuracy and high aesthetics of the work carried out.
THERMAL ISOLATION
Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient U 0.16-0.18 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30 [W/(m2•K)].
ANTHRACITE-COLOURED WINDOW AND DOOR JOINERY
As standard, a 3-glazing package with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)]. 5-chamber frame and sash profiles made of PVC in A class. Available with toughened, safety, anti-burglary or solar control glass.
ELECTRICAL INSTALLATION
Flush-mounted, fittings (switchboard, sockets, connectors).
PLUMBING
Flush-mounted, welded PP, PVC sewer pipe. Connections in the floor outside the container
WALL AND CEILING FINISHES
Internal steel and wood construction of walls and ceilings, plasterboard construction, surface finished with a plasterboard and painted.
EXTERIOR PAINTING
Container hydrodynamically painted with alkyd or polyurethane paint.
ADDITIONAL EQUIPMENT
BATHROOM
10L water heater, washbasin on cabinet with integrated mixer tap, toilet seat with concealed cistern, door, bathroom radiator
KITCHEN
IKEA cabinets
AIR CONDITIONING
3.5 kW Haier air conditioning with heating function
FLOOR
Vinyl panels, skirting boards MDF white 10cm
LIGHTING
Indoor and outdoor LED
ADDITIONAL INFORMATION
The building has insulation parameters at the level of a traditional single-family house. Our insulation provides comfortable living conditions
