Description
Flexicube L30 Takeaway
Otwarta przestrzeń do gastronomiczna

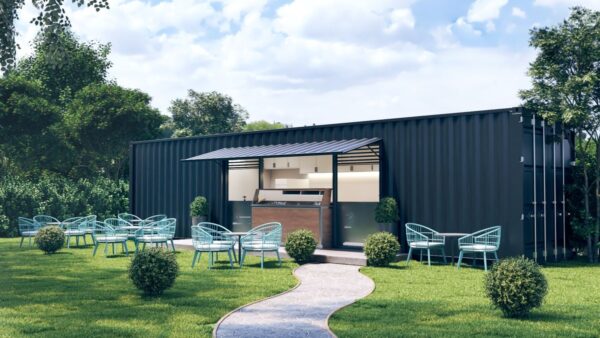

L30 Takeaway to adaptacja nowego kontenera morskiego 40FT HC.
Scope of container conversion
to shell condition
NEW SHIPPING CONTAINER (ONE-WAY)
The container conversion is carried out on a new 20ft HC one-way container. The shipping container is made of Corten (weathering) steel with increased resistance to weather conditions. Corten steel was specially designed and developed to minimise corrosion in the very harsh weather conditions found in the marine environment.
CONTAINER STRUCTURAL MODIFICATION
Cutting out and removing sections of the container-sheet walls in order to prepare the structure for the installation of windows and doors. Prefabrication and welding with consistently high-quality welds. Precision and a high standard of finish.
THERMAL INSULATION
Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient (U-value) U 0.16-0.18 [W/(m2•K)]. Floor insulated with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient (U-value) U 0.30 [W/(m2•K)]
WINDOWS AND DOORS IN ANTHRACITE
A triple-glazed unit with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)] comes as standard. 5-chamber frame and sash profiles made of class A PVC. Toughened, safety, anti-burglary or solar-control glass can be fitted.
ELECTRICAL INSTALLATION
Flush-mounted, with top-quality fittings (distribution board, sockets, switches).
PLUMBING AND SEWAGE INSTALLATION
Flush-mounted, welded PP, PVC waste pipes. Connections routed through the floor to the outside of the container
WALL AND CEILING FINISHES
Internal steel and timber framework for the walls and ceilings, lined with plasterboard, the surface skim-finished and painted
EXTERIOR PAINTING
The container is painted hydrodynamically with alkyd or polyurethane paint.
Optional equipment
najczęściej wybierane wyposażenie
ŁAZIENKA
Podgrzewacz wody 10L, umywalka na szafce z wbudowaną baterią, sedes ze stelażem podtynkowym, drzwi, grzejnik łazienkowy
KUCHNIA
Wyposażenie gastronomiczne możliwe po uzgodnieniu szczegółów z zamawiającym
KLIMIATYZACJA
Klimatyzacja 3,5 kW Haier z funkcją grzania/chłodzenia pomieszczenia socjalnego
PODŁOGA
Panele winylowe, listwy przypodłogowe MDF białe 10cm
OŚWIETLENIE
Wewnętrzne i zewnętrzne LED
INFORMACJE DODATKOWE
Budynek ma parametry izolacji na poziomie tradycyjnego domu jednorodzinnego. Nasza izolacja zapewnia komfortowe warunki użytkowania
